KG550 Down The Hole Hammer Marble Quarry Stone Mining Blasting Drilling Rig Machine

• Equipped with a Yuchai four-cylinder engine and an integrated controller that provides real-time monitoring of the drill rig’s operating parameters;
• Features a flanged crawler frame and heavy-duty undercarriage components; includes a crawler leveling system and reinforced plunger-type travel motors, which increase working pressure and enhance the rig’s climbing capabilities;
• The guide rail liners are constructed from wear-resistant materials, ensuring a long service life for the feed frame assembly;
• A dual-motor rotary head with a high reduction ratio delivers a rotational torque exceeding 4000 Nm; the feed system utilizes a 24A roller chain driven by a dedicated feed motor, significantly enhancing the reliability of drilling operations;
• Employs high-pressure, large-displacement cast-iron gear pumps, ensuring superior product quality while offering the advantages of a long service life and stable performance;
• The frame components feature an optimized layout that significantly expands internal space; the protective housing is constructed from thickened structural profiles and features multi-directional access doors to facilitate convenient maintenance and servicing;
• This machine is widely applicable for drilling blast holes at various construction sites, including those involving large-diameter piles for photovoltaic power plants, hydroelectric projects, open-pit mining, road construction, and tunnel excavation.

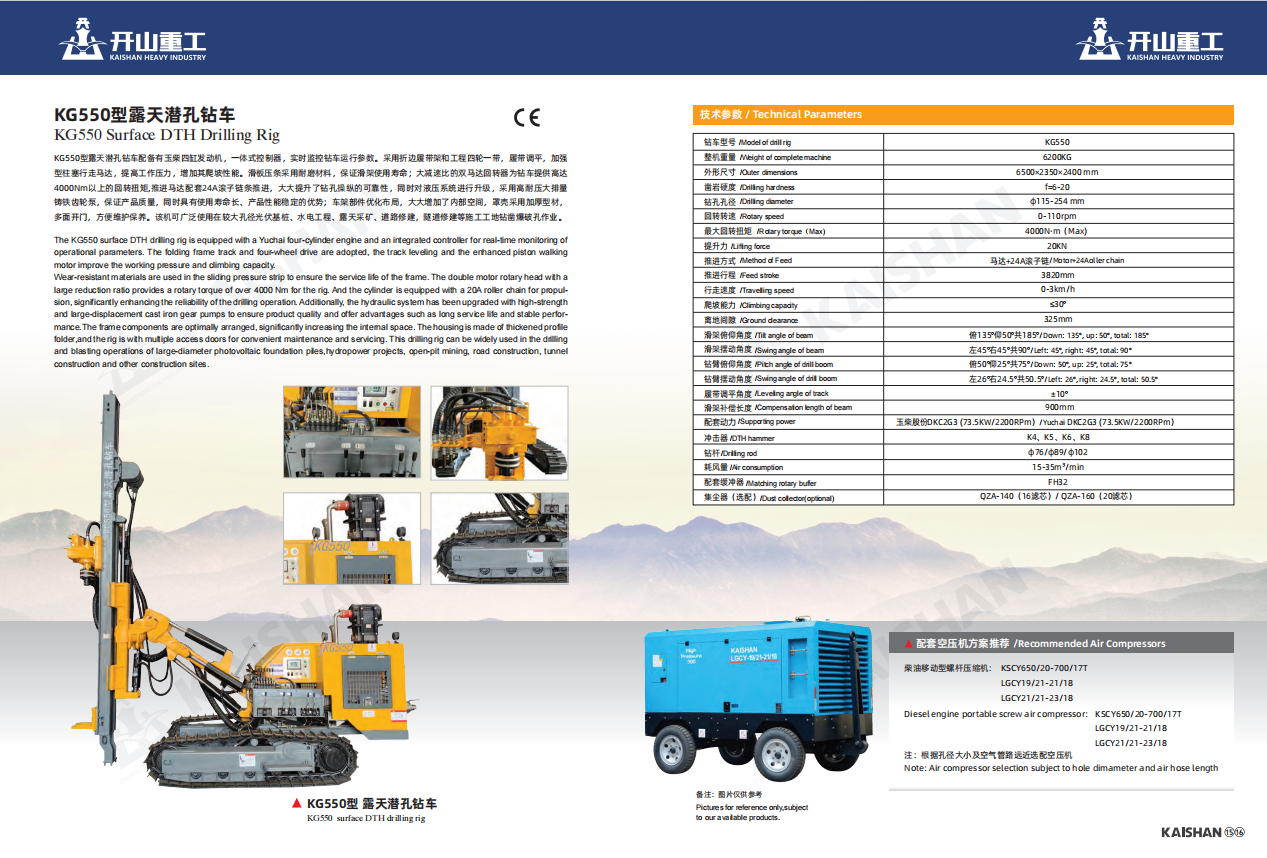

Technical Parameters
