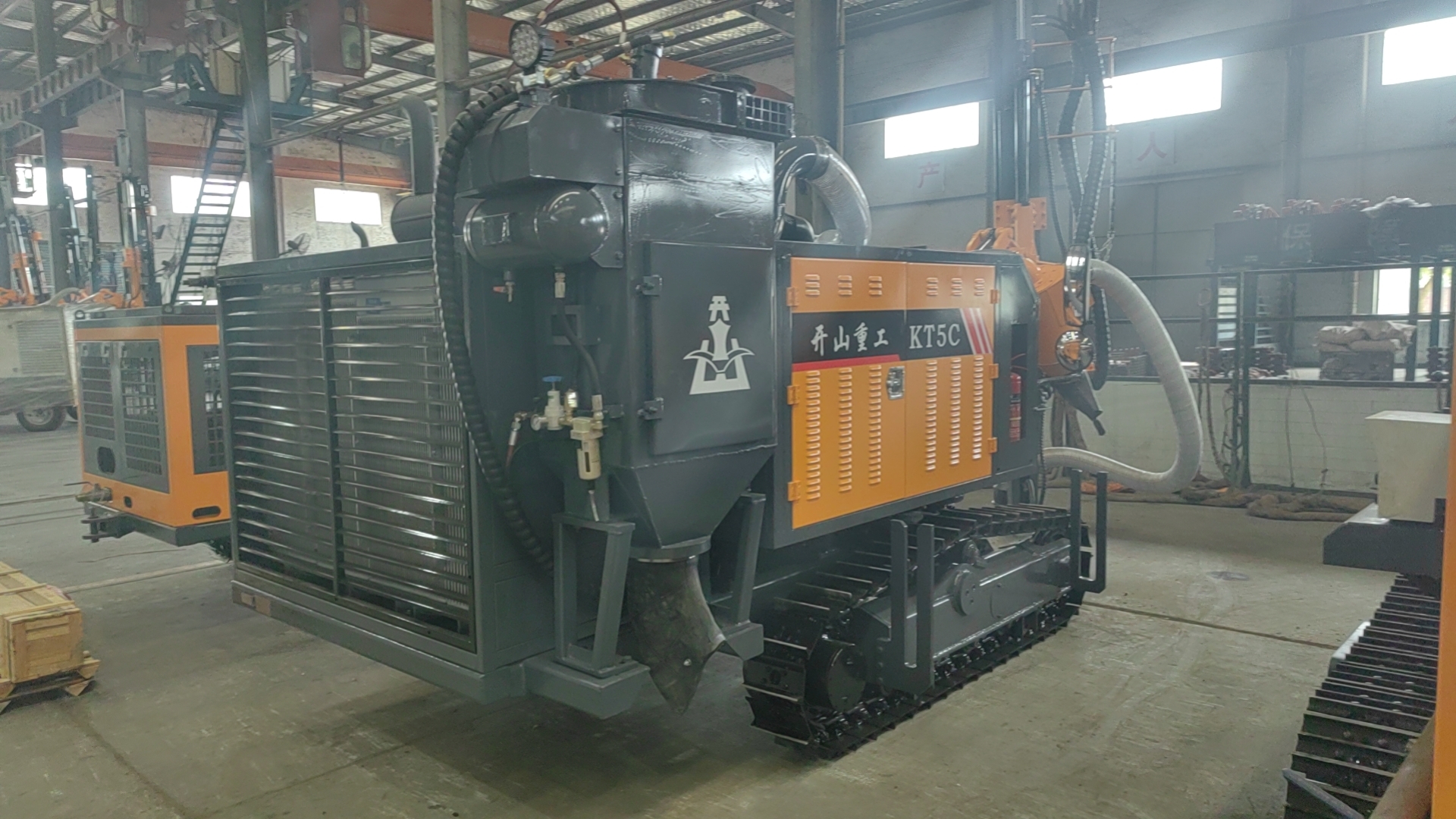

KT5C Integrated Down The Hole Drill Rig For Open Use
Specification
| Drillinghardness | f=6-20 | |
| Drillingdiameter | 80-105mm | |
| Depthofeconomicaldrilling | 25m | |
| Travellingspeed | 2.5/4.0km/h | |
| Climbingcapacity | 30° | |
| Groundclearance | 430mm | |
| Powerofcompletemachine | 162kW/2200r/min | |
| Dieselengine | YuchaiYC6J220-T303 | |
| Capacityofscrewcompressor | 12m3/min | |
| Dischargepressureofscrewcompressor | 15bar | |
| Outerdimensions(L×W×H) | 7800×2300×2500mm | |
| Weight | 8000kg | |
| Rotationspeedofgyrator | 0-120r/min | |
| Rotarytorque（Max) | 1680N·m（Max) | |
| Maximumpush-pullforce | 25000N | |
| Liftingangleofdrillboom | Up54°,down26° | |
| Tiltangleofbeam | 125° | |
| Swingangleofcarriage | Right47°,left47° | |
| Lateralhorizontalswingangleofcarriage | Right15°,left97° | |
| Swingangelofdrillboom | Right53°,left15° | |
| Levelingangleofframe | Up10°,down9° | |
| One-timeadvancelength | 3000mm | |
| Compensationlength | 900mm | |
| DTHhammer | 3＂ | |
| Drillingrod | φ64×3000mm | |
| Methodofdustcollecting | Drytype(hydrauliccycloniclaminarflow) | |
Product Description
Integrated down the hole drill rig is an efficient and easy-to-operate drilling equipment that can be widely used in mines, construction and engineering sites.
Integrated down the hole drill rig is an advanced drilling equipment, which can perform stable drilling operations under various geological conditions. This device has many unique features and advantages.
First of all, it is made using high-quality materials, so it is extremely durable and reliable.
Secondly, it is energy-saving and environmentally friendly, does not produce pollution, and fully meets environmental protection requirements. Finally, one of the advantages of the Integrated down the hole drill rig is its ease of operation and maintenance. Its operation interface is simple and clear, and it is equipped with advanced system software to make drilling operations easier, safer and more efficient. Application fields: Integrated down the hole drill rig can be widely used in various mining, construction and engineering sites.
It can be used in mining, such as Caterpillar mines, metal mines, rock mines, etc. For construction sites, it can be used for the construction of infrastructure, highways, bridges, cement roads, etc. In addition, it is also often used in tasks such as building demolition and geological disaster rescue. Installation and maintenance: The installation of the Integrated down the hole drill rig is very simple, it basically only needs to fix the equipment and wire in the designated position. In use, it needs regular maintenance and maintenance, which can ensure that the equipment is always in a stable working condition.
Compared with traditional drilling equipment, the maintenance and maintenance requirements of Integrated down the hole drill rig are relatively low, so it can help users save a lot of time and money.
Summarize: Combining the advanced technology and excellent performance of the downhole drilling rig, it can provide users with a fast, safe and efficient drilling equipment, which is widely used in various constructions, mining and engineering. Its high quality, ease of operation and maintenance, and reliability are important factors that make it the best drilling equipment.
