KT6C Mining Dth Stone Pneumatic Rock Blasting Drilling Rig Machine with Air Compressor

Short Description:

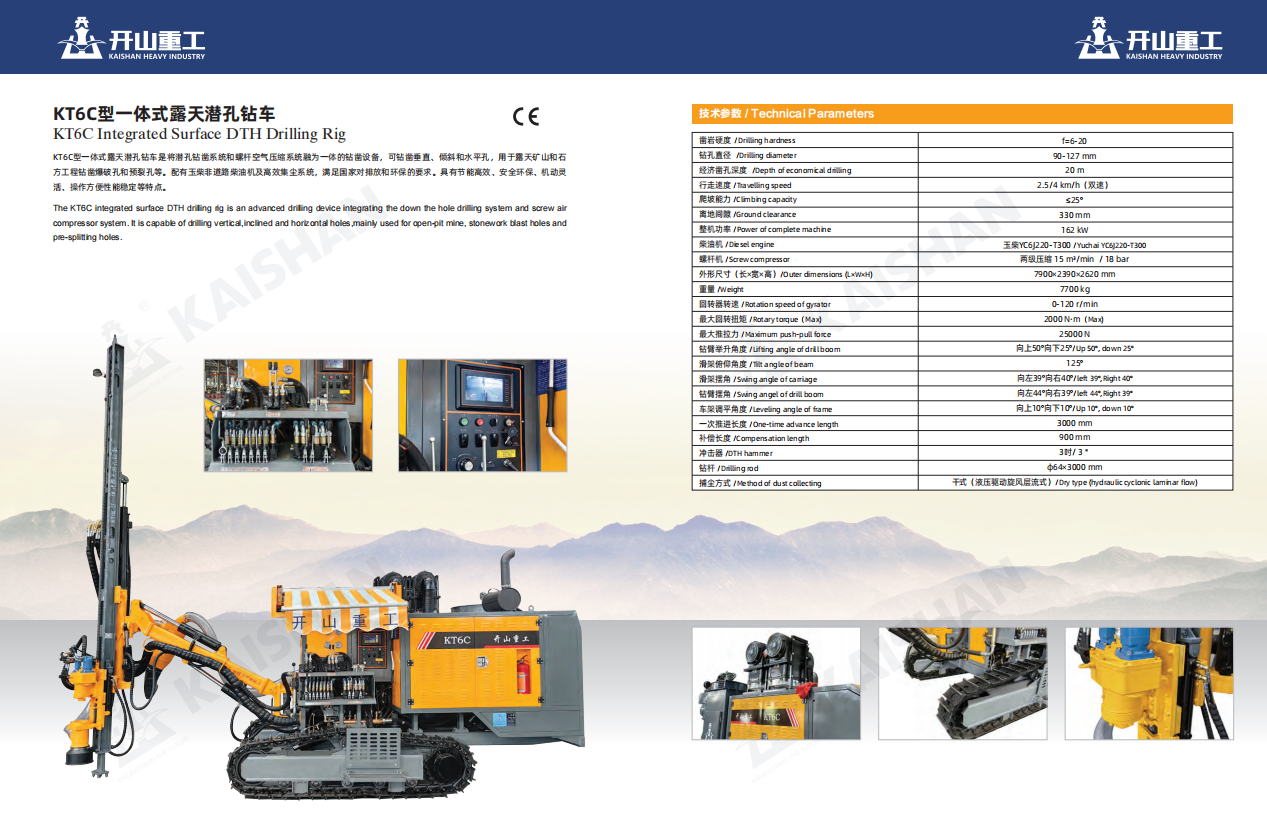

The KT6C integrated surface DTH drilling rig is an advanced drilling device integrating the down the hole drilling system and screw air compressor system. It is capable of drilling vertical,inclined and horizontal holes,mainly used for open-pit mine, stonework blast holes and pre-splitting holes.

Send email to us Download

Product Detail

Product Tags

Drillinghardness		f=6-20
Drillingdiameter		90-127mm
Depthofeconomicaldrilling		20m
Travellingspeed		2.5/4.0km/h
Climbingcapacity		≤25°
Groundclearance		330mm
Powerofcompletemachine		162kW
Dieselengine		YuchaiYC6J220-T303
Capacityofscrewcompressor		15m3/min
Dischargepressureofscrewcompressor		18bar
Outerdimensions(L×W×H)		7900×2390×2620mm
Weight		8600kg
Rotationspeedofgyrator		0-120r/min
Maximumpush-pullforce		25000N
Liftingangleofdrillboom		Up50°,down25°
Tiltangleofbeam		125°
Swingangleofcarriage		Right40°,left39°
Swingangelofdrillboom		Right39°,left44°
Levelingangleofframe		Up10°,down10°
One-timeadvancelength		3000mm
Compensationlength		900mm
DTHhammer		3＂
Drillingrod		φ64×3000mm
Methodofdustcollecting		Drytype(hydrauliccycloniclaminarflow)

Equipped with a Kaishan two-stage compression 15/18 air-end, it delivers high air displacement—ensuring energy efficiency and meeting the demands of high-performance rock drilling operations.
Features a high-performance Yuchai diesel engine for reduced fuel consumption, paired with a high-capacity, efficient “desert-style” air filter; the result is a system that is exceptionally stable, reliable, efficient, and environmentally friendly.
Utilizes a dual-motor rotary head system offering high torque and high rotational speed to boost drilling efficiency; this is complemented by an efficient dust collection system featuring a dual-cylinder dust capture mechanism, ensuring safe, eco-friendly, reliable, and durable operation.
Incorporates an upgraded drill boom mount for enhanced structural durability, along with an extended boom arm that significantly widens the drilling coverage area from a single machine position, thereby maximizing hole-forming efficiency.
Features an optimized control system that presents all operational data at a glance; the addition of a reverse-view camera expands the operator’s field of vision during machine maneuvering, thereby ensuring maximum safety.
Includes a newly designed rain- and sun-proof canopy, safeguarding the operator and ensuring uninterrupted operation even under adverse weather conditions such as high temperatures, rain, or snow.
Boasts a rationally optimized internal layout that facilitates easier and more convenient maintenance and servicing.
Capable of drilling vertical, inclined, and horizontal holes, making it ideally suited for applications in open-pit mines and rock excavation projects.
