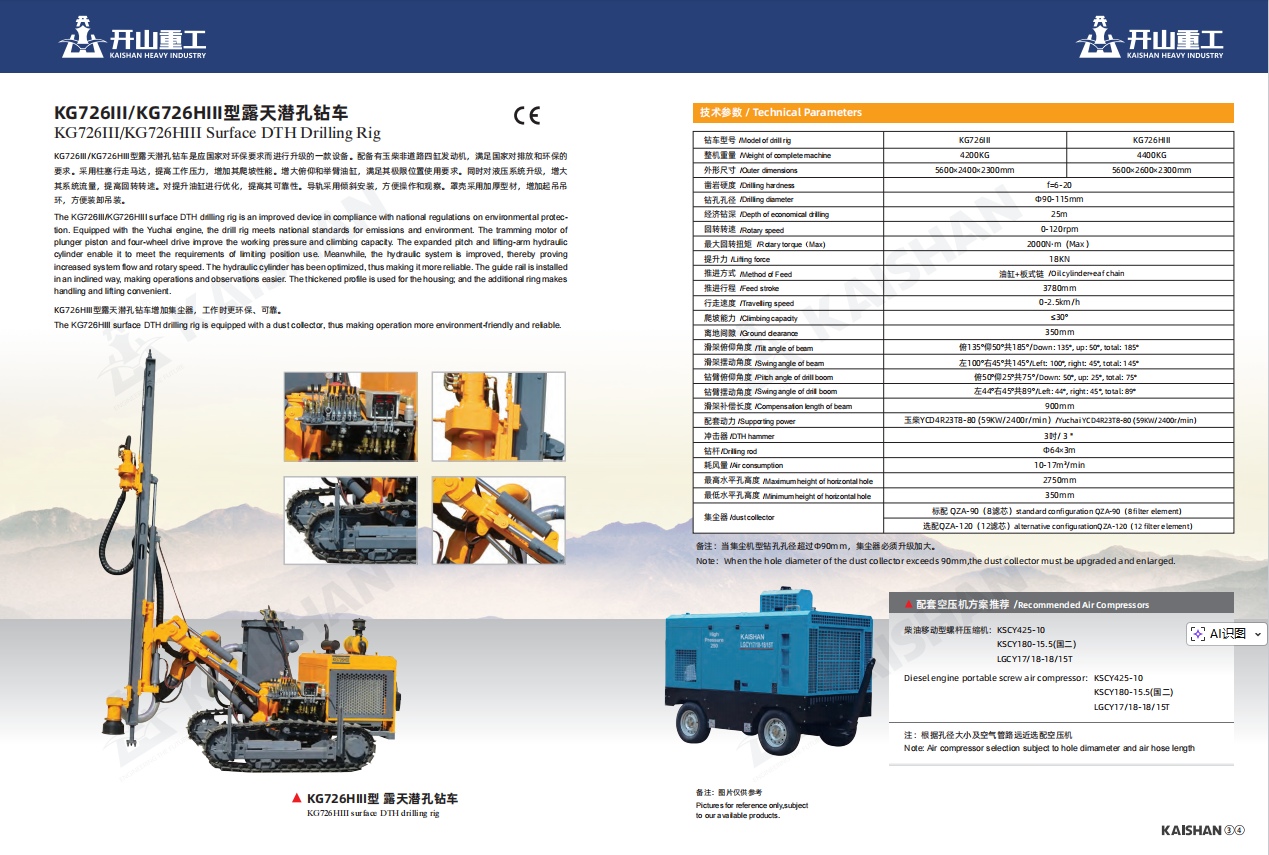

Kaishan KG726HIII Integrated DTH Drill Rig with Dust Collector

The KG726III/KG726HIII series is a high-performance upgrade designed for heavy-duty open-pit mining. It features an optimized hydraulic system and reinforced structural components to handle larger hole diameters with superior penetration speed.

• Equipped with a Yuchai non-road four-cylinder engine, meeting national standards for emissions and environmental protection;
• Features a flanged crawler frame and heavy-duty undercarriage components;
• Includes a crawler leveling system and plunger-type travel motors, increasing operating pressure and enhancing climbing capability;
• Features enlarged boom-lift and pitch cylinders to meet operational requirements at extreme positions;
• Delivers increased swing torque and rotation speed;
• Utilizes a motor-and-chain feed mechanism to enhance lifting force and reliability;
• Equipped with an enlarged dust collector to improve dust extraction efficiency;
• The protective housing is constructed from thickened, flanged profiles to enhance structural strength and rigidity;
• Includes additional lifting rings to facilitate convenient loading, unloading, and hoisting operations;
• The KG726HIII Open-Pit DTH Drilling Rig features an enlarged dust collector, ensuring more eco-friendly and reliable performance during operation.
