Kaishan Oil-injected Rotary Screw Vacuum Pump | 0.5mbar Ultimate Vacuum

Short Description:

The Kaishan oil-injected screw vacuum pump combines the mature architecture of screw compressors with advanced vacuum fluid technology. Through oil injection for sealing and cooling, it effectively dissipates compression heat in extremely high vacuum environments, making it a versatile power core for wood processing, plastic molding, central vacuum systems, and the packaging industry.

Send email to us Download

Product Detail

Product Tags

Technical parameters of KVP series

Model	Power(kW)	Nominal Pumping Speed(m³/h)	Extreme Pressure(mbar)	Weight(kg)
KVP530	7.5	516	0.5	580
KVP750	11	722	0.5	600
KVP950	15	912	0.5	700
KVP1200	18.5	1088	0.5	750
KVP1400	22	1278	0.5	1150
KVP1800	30	1728	0.5	1300
KVP2300	37	2124	0.5	1460
KVP3000	45	2816	0.5	2230
KVP3800	55	3725	0.5	2370
KVP4600	75	4548	0.5	2770
KVP5400	90	5321	0.5	3050

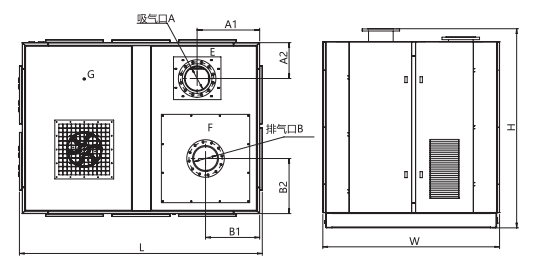

Overall dimensions of KVP series

Installation dimensions table
Model	L	W	H	A	A1	A2	B	B1	B2
KVP530	1215	1015	1410	DN100	269	265	DN65	385	150
KVP750	1215	1015	1410	DN200	269	265	DN65	385	150
KVP950	1315	1265	1700	DN125	381	306	DN80	436	190
KVP1200	1315	1265	1700	DN125	381	306	DN80	436	190
KVP1400	1665	1615	1890	DN150	567	378	DN100	350	739
KVP1800	1665	1615	1890	DN150	567	378	DN100	350	739
KVP3000	2415	1615	2165	DN200	410	378	DN150	369	313
KVP3800	2415	1615	2165	DN200	410	318	DN150	369	313
KVP4600	2200	1650	1910	DN200	623	328	DN150	470	450
KVP5400	2560	1860	2100	DN200	660	380	DN200	570	580

Core Technological Advantages:

Extremely High Vacuum Limit: Thanks to the strong sealing oil film formed by the lubricating oil between the screws, the ultimate vacuum level can reach below 0.5 mbar, far superior to traditional single-stage rotary vane pumps or liquid ring pumps.
Outstanding Reliability and Heat Dissipation: The oil injection circulation system not only provides lubrication but also efficiently cools the pump core, ensuring that the unit will not shut down due to overheating under 24/7 high-load operating conditions.
Built-in High-Efficiency Oil-Gas Separation: Utilizing multi-stage oil-gas separation technology, it ensures extremely low oil content in the discharged gas, effectively protecting the environment and reducing lubricating oil consumption.
Intelligent Variable Frequency Energy Saving: An optional intelligent variable frequency drive (VSD) system is available, which automatically adjusts the motor speed according to the actual gas demand, improving energy efficiency by more than 30% compared to fixed-frequency pumps.
